chart 0.1.1

Charts for Tessel programs: lines, dots, areas and bars, on linear or log axes, with ticks, titles and a legend worked out for you. Draw one into a Canvas, or save it as a PNG or a PDF from a program with no window at all.

See the gallery at chart-package.syncster.dev.

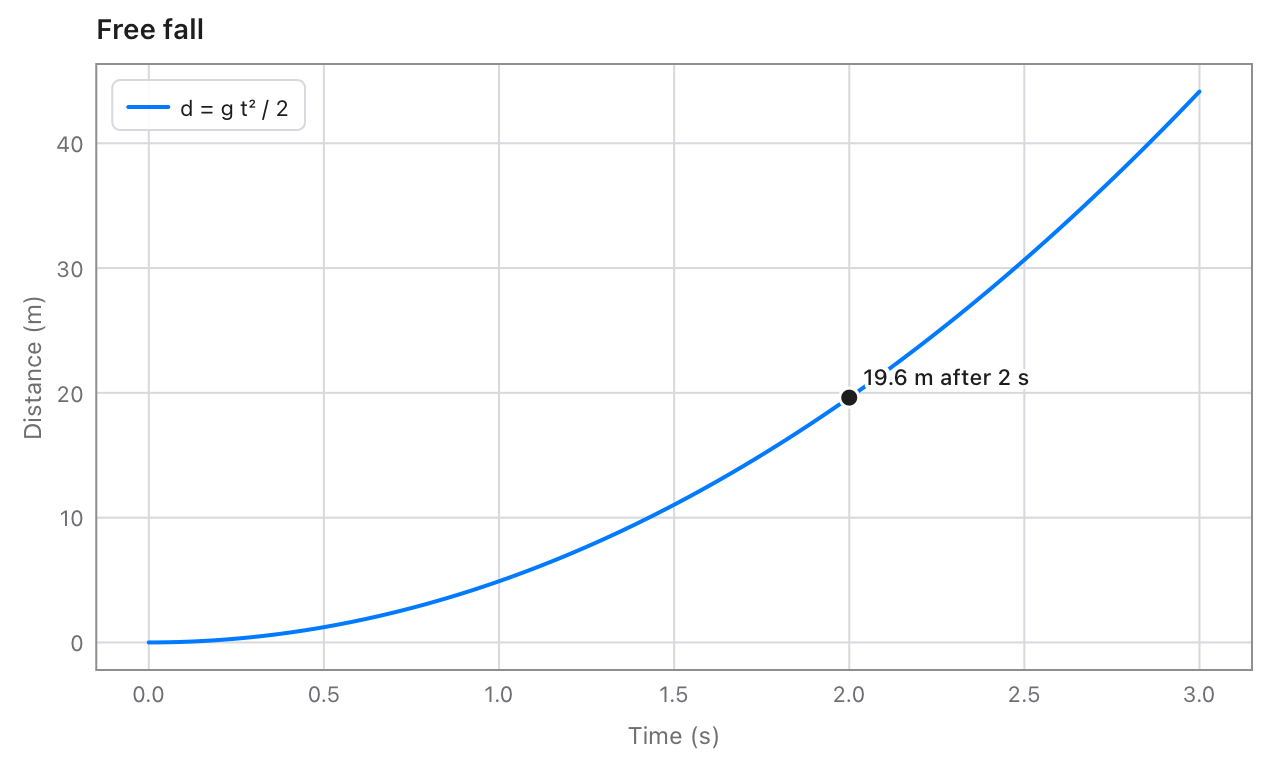

import chart

fn main() {
    var c = chart.Chart(title: "Free fall", xLabel: "Time (s)", yLabel: "Distance (m)")
    c.function(from: 0, to: 3, name: "d = g t² / 2") { t in 9.81 * t * t / 2.0 }
    c.point(x: 2, y: 19.62, label: "19.6 m after 2 s")
    c.savePNG("fall.png")
}

Using it

Add it to a project (Tessel 0.10 or later):

tessel add chart

then import chart. Make a chart.Chart, add data to it, and draw or save it. A chart is a plain value: build it with var, and make a new one whenever the data changes.

What goes on a chart

Everything but the data is optional. A series with a name is listed in the legend. A series with no color gets the next of the chart's colors (blue, orange, green, red, purple, pink, gray, yellow). A value that is NaN, or 0 or less on a log axis, breaks the line there.

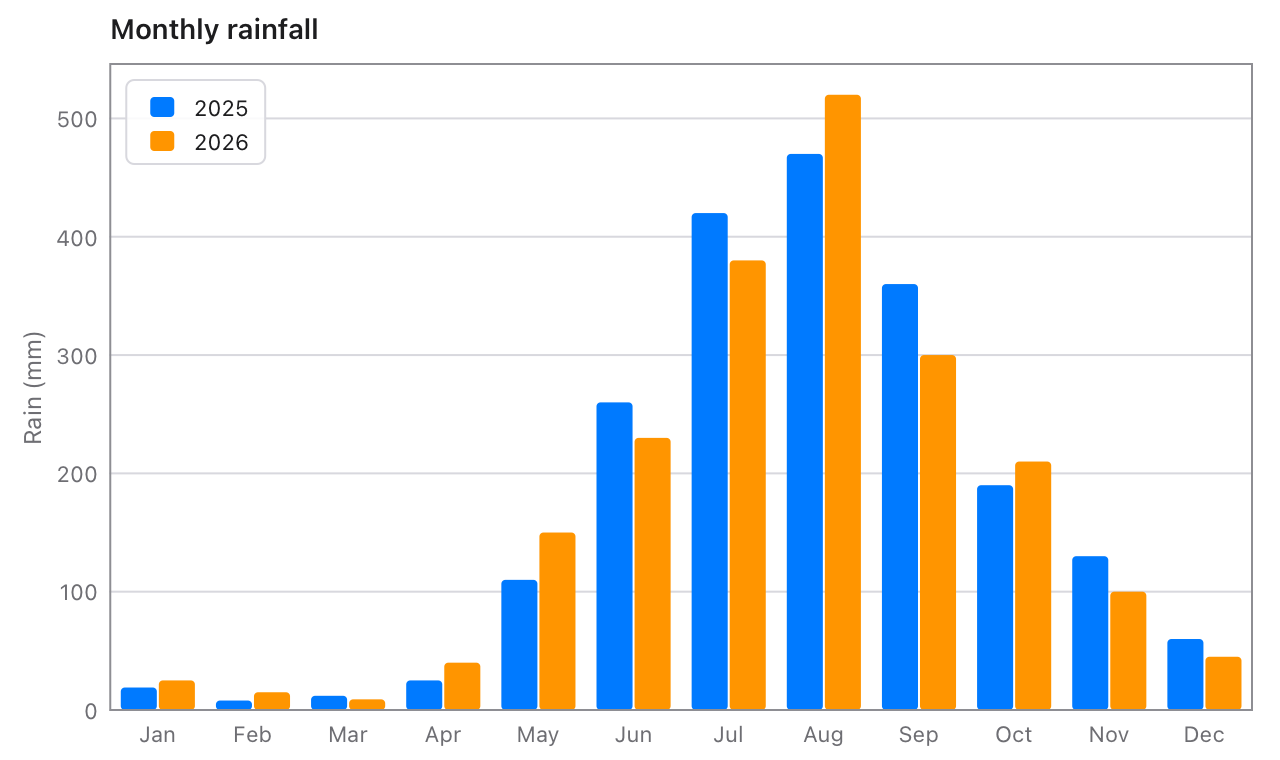

var rain = chart.Chart(title: "Monthly rainfall", yLabel: "Rain (mm)")
let months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]
rain.bars(months, [19, 8, 12, 25, 110, 260, 420, 470, 360, 190, 130, 60], name: "2025")
rain.bars(months, [25, 15, 9, 40, 150, 230, 380, 520, 300, 210, 100, 45], name: "2026")

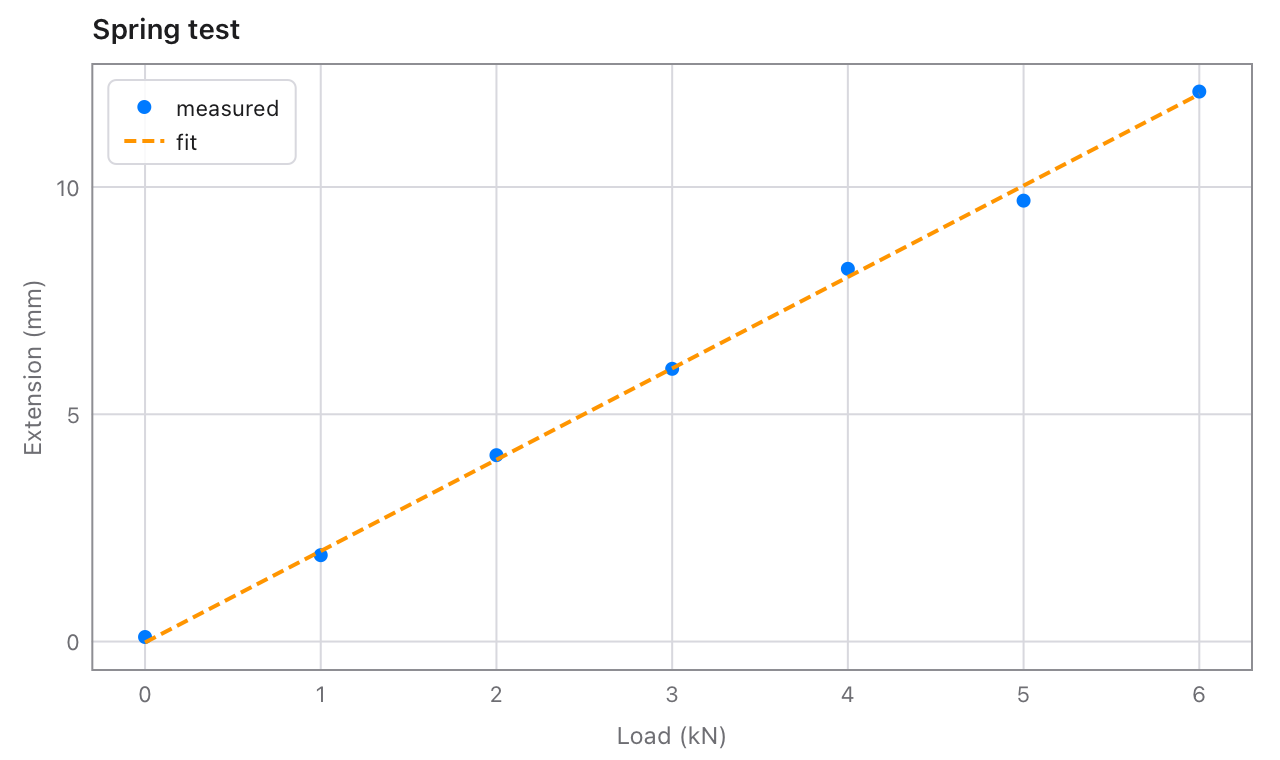

var fit = chart.Chart(title: "Spring test", xLabel: "Load (kN)", yLabel: "Extension (mm)")
fit.scatter([0, 1, 2, 3, 4, 5, 6], [0.1, 1.9, 4.1, 6.0, 8.2, 9.7, 12.1], name: "measured")
fit.line([0, 6], [-0.02, 12.04], name: "fit", dash: [6, 3])

The chart's settings

They're the Chart's fields: give them when you make it (in this order), or set them afterwards.

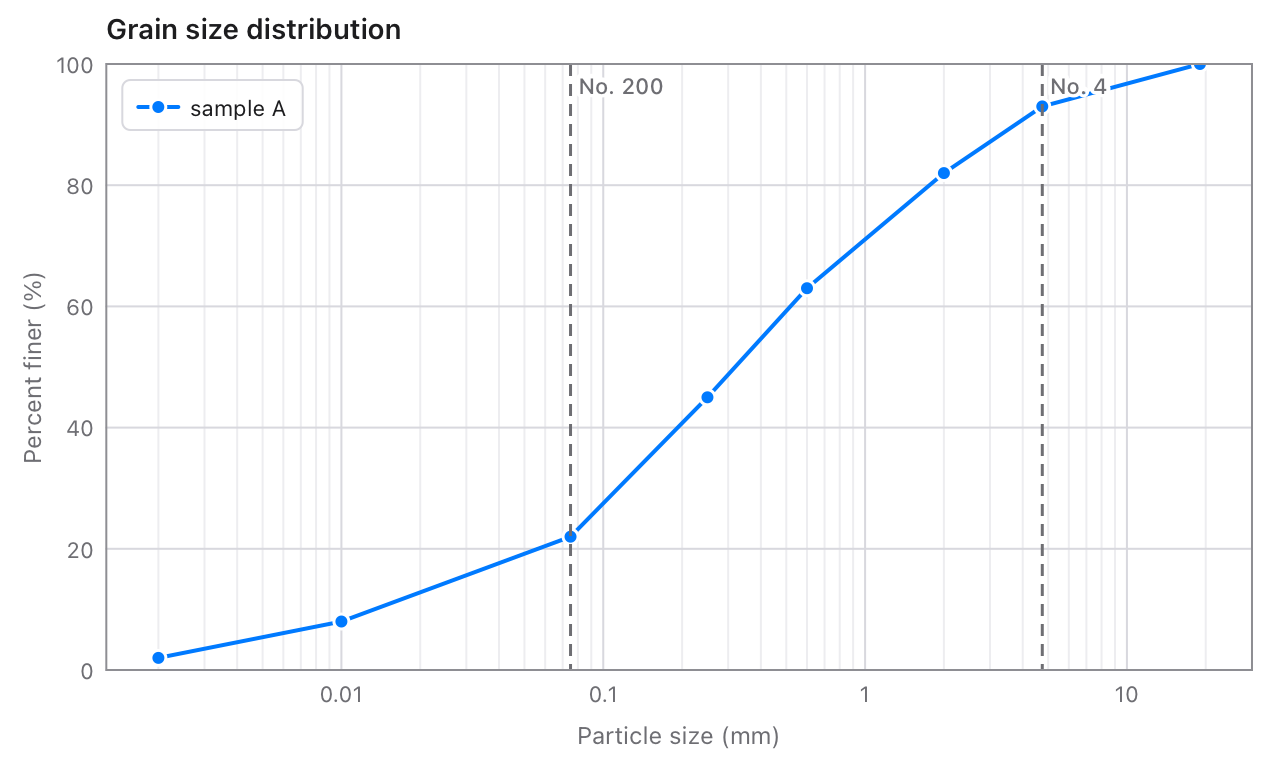

var grain = chart.Chart(title: "Grain size distribution", xLabel: "Particle size (mm)", yLabel: "Percent finer (%)",
    yMin: 0, yMax: 100, xScale: .log)
grain.line([0.002, 0.01, 0.075, 0.25, 0.6, 2.0, 4.75, 19], [2, 8, 22, 45, 63, 82, 93, 100], name: "sample A", markers: true)
grain.verticalLine(0.075, label: "No. 200")
grain.verticalLine(4.75, label: "No. 4")

Drawing and saving

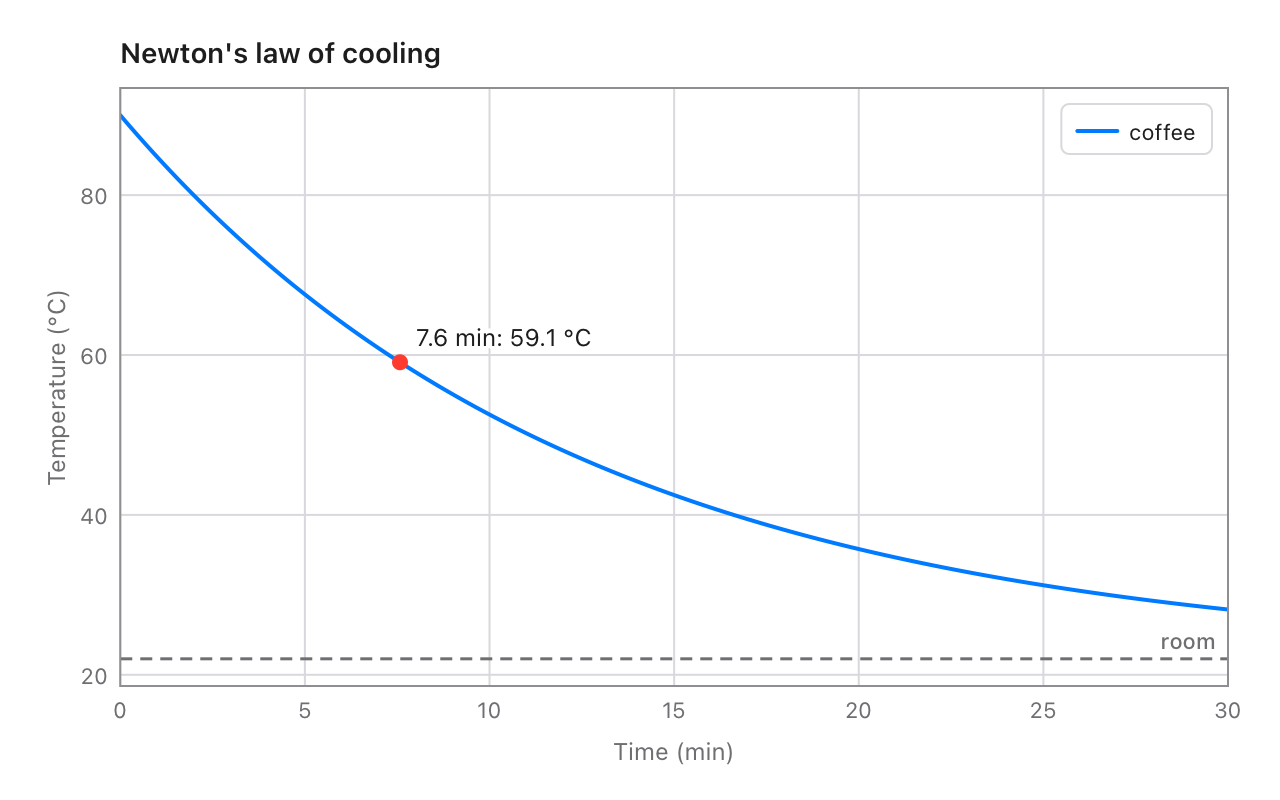

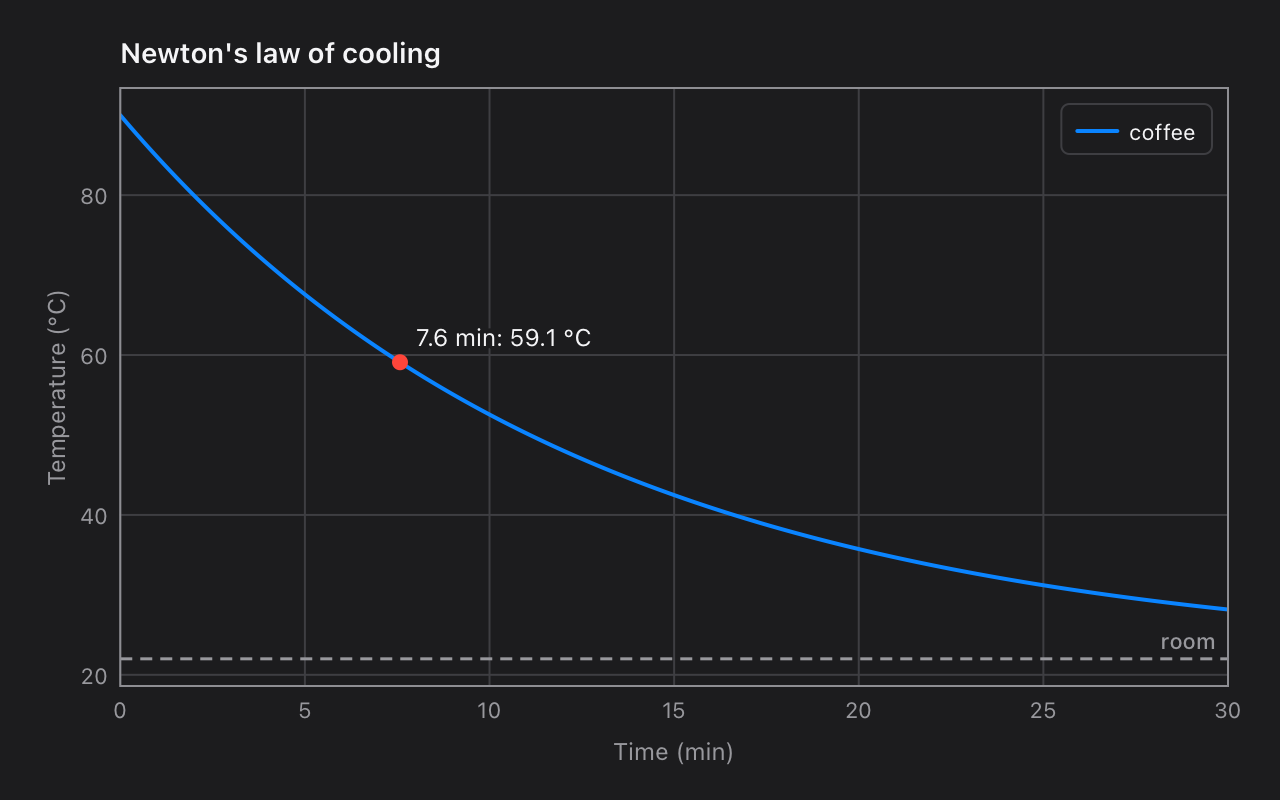

In a window, the chart follows the light or dark appearance by itself. draw returns a Frame. Its px(x) and py(y) turn data values into points on the canvas, for drawing more on top, and xAt(px) and yAt(py) turn points back into data values, for reading the value under the mouse:

import chart

// A chart in a window, with a readout that follows the mouse.
app Cooling(title: "Cooling", width: 640, height: 400) {
    state mouseX: Float = -1.0

    Canvas { g in
        var c = chart.Chart(title: "Newton's law of cooling", xLabel: "Time (min)", yLabel: "Temperature (°C)")
        c.function(from: 0, to: 30, name: "coffee") { t in 22.0 + 68.0 * exp(-0.08 * t) }
        c.horizontalLine(22, label: "room")
        let f = c.draw(g)
        // The mouse's position, turned into a time on the chart.
        let t = f.xAt(mouseX)
        if t >= 0.0 && t <= 30.0 {
            let temp = 22.0 + 68.0 * exp(-0.08 * t)
            g.fillCircle(x: f.px(t), y: f.py(temp), radius: 4, color: .red)
            g.text("{t.formatted(decimals: 1)} min: {temp.formatted(decimals: 1)} °C", x: f.px(t) + 8.0, y: f.py(temp) - 6.0, size: 12, align: .bottomLeading, halo: .background, haloWidth: 2.0)
        }
    }
    .onPointer { e in
        mouseX = e.x
    }
    .padding(12)
}

The Frame also has the plot area's left, top, width, height, right and bottom, the data range it shows, and contains(px, py).

Ticks

The functions that place the ticks are public too, for drawing axes of your own: tickStep(span:count:) gives a round step (1, 2 or 5 times a power of ten), ticks(from:to:count:) and logTicks(from:to:count:) the values, and tickLabel(value, step:) the text, with as many decimals as the step needs and very large or small numbers written like 2.5e6.

Mistakes

Data that doesn't fit together, like 5 x values with 4 y values, or bars with a different number of values than the chart has categories, is a mistake in the code. It stops the program with a message:

chart: line got 5 x values but 4 y values: they must be as many

Tests

tessel run tests

checks the ticks, their labels, the frame's arithmetic and the ranges worked out from data, saves charts of every kind (and every example here), and exits with 1 if any check fails. The pictures go to the temporary folder, to look at. tessel run examples saves this README's pictures in docs/.

What's where

Licence

MIT: see LICENSE.
